Flightplan KSFO to KlAX



This flight plan will be created by using navaids (VOR's, NDB's, intersections (fixes) only

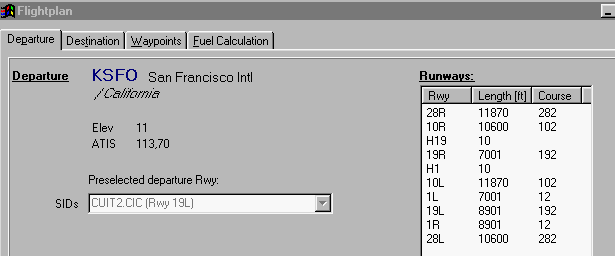

  1. Choose Menu: Flight plan/New or click {short description of image}
    The flight plan-form will be displayed and also the
    departure/destination selection-form, because departure and destination  airport must be inserted first.
  2. Confirm, that data in departure/destination selection-form are sorted by ICAO-key
    then enter KSFO into the "Find" field and hit return key.
    The airport  row containing the San Francisco airport on the form is highlighted
    and KSFO is going to be inserted into the  flight plan as departure.
    Now repeat this for  the destination: Enter KLAX into the find field, hit the return key and KLAX is going to be inserted as destination.

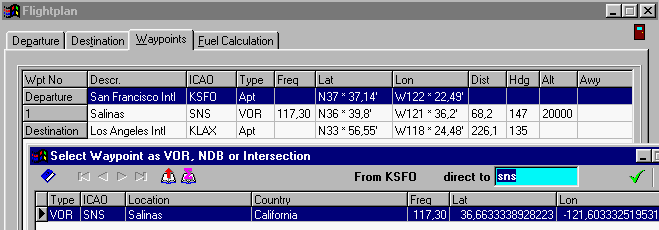

  3. In order to insert the waypoints chose menu Waypoints/Waypoint or click
    The
    waypoint-selection form is displayed.
    Now enter SNS intothe 'direct to field'  and hit the return key
    The VOR waypoint Salinas (SNS) will be found and because there is no other waypoint  with this name, this waypoint will be inserted immediately into the flightplan.
    Repeat this procedure with the waypoints ROBIE, AVE, DERBB, REYES and FIM.

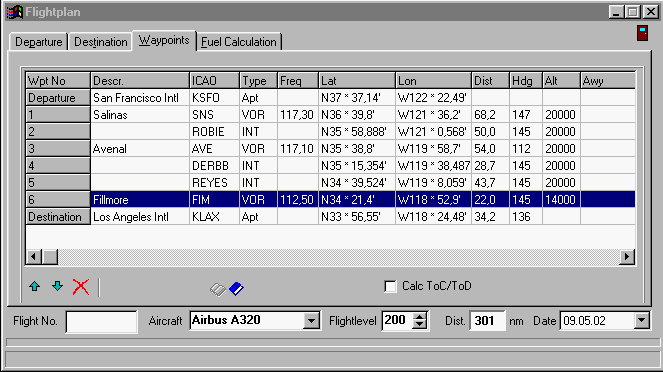

    Your flight plan is ready now.
    You may enter a Flight Number, increase/decrease the flightlevel, change the aircraft or save the flight plan.

  4. In order to save the flight plan choose menu Flightplan/Save or click and the saving  flightplan form opens

    You can use the offered flightplan name (KSFO-KLAX-1) or you can overwrite it by your own name. Click the accept button  for finally saving  and close then flightplan by clicking
