Creating a SID from  scratch

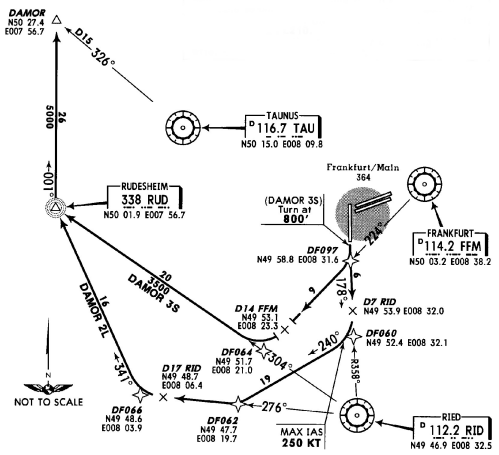

Create SID DAMOR3S from EDDF Rwy. 18



This SID consists  of following
waypoints:



Intersection

DF097

calculated waypoint

D7RID

Intersection

DF060

Intersection

DF062

calculated waypoint

D17RID

Intersection

DF066

NDB

RUD

Intersection

DAMOR

next step





Step 1

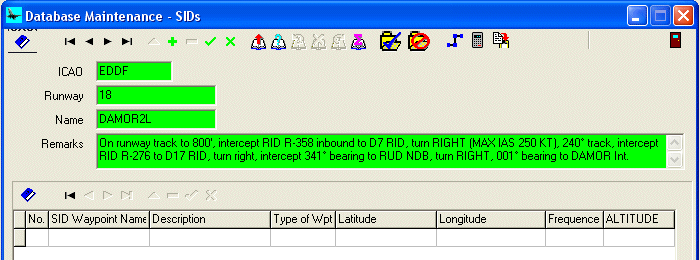

  1. Click
  2. Enter ICAO: EDDF
  3. Enter Runway: 18
  4. Enter Name DAMOR2L
  5. (optional) enter remarks
  6. Click

next step
previous step
top















Step 2

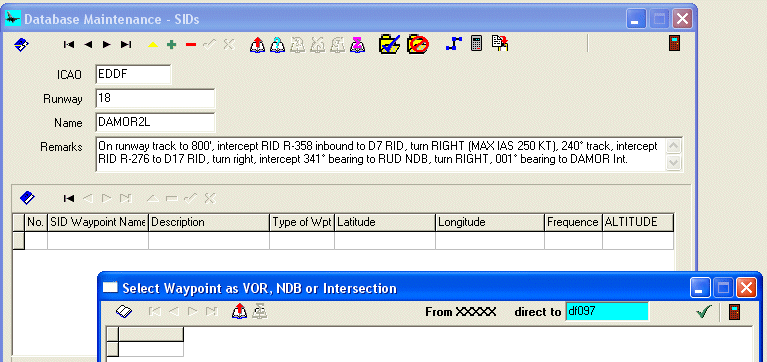

  1. Click
  2. Enter df097
  3. Click Return key

next step
previous step
top



Step 3

First waypoint (DF097) is inserted

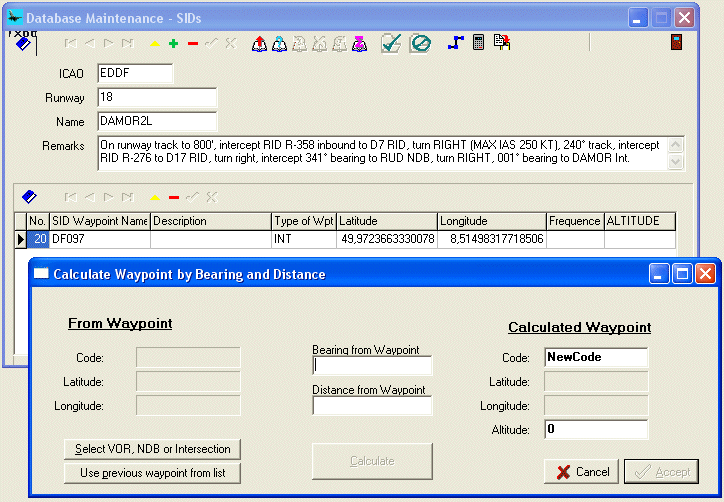

  1. Click
  2. Click "Select VOR, ..."

next step
previous step
top



Step 4

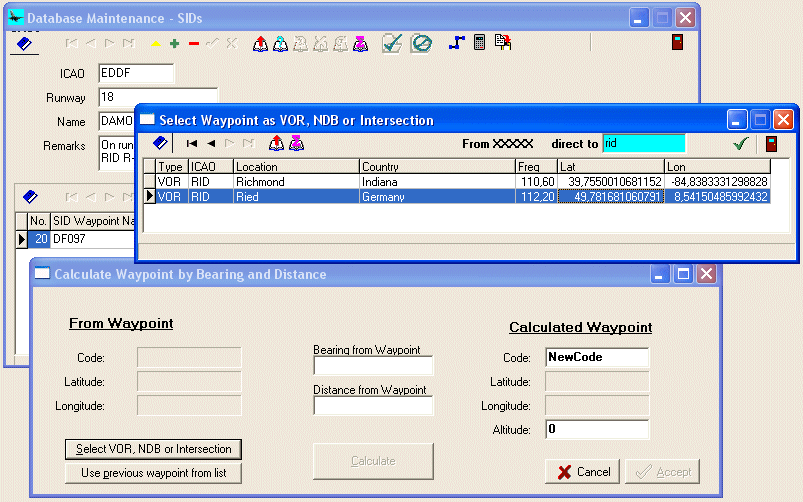

  1. Enter rid
  2. Select Ried/Germany
  3. Click

next step
previous step
top



Step 5

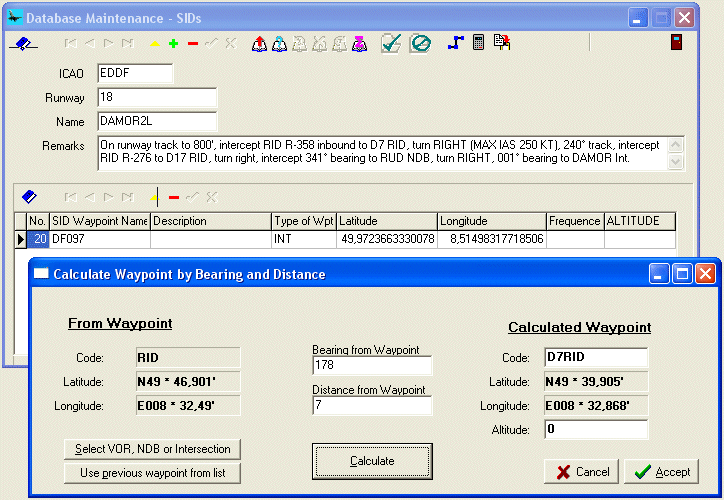

  1. Enter "Bearing ..."  178
  2. Enter "Distance..."  7
  3. Click Calculate
  4. Click Accept

next step
previous step
top



 Step 6

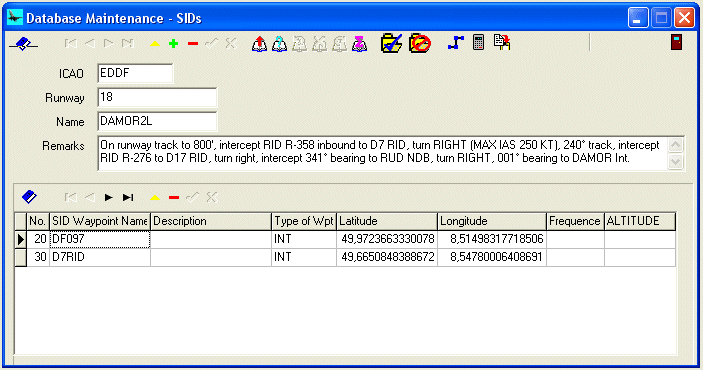

  1. Waypoint D7RID is inserted

next step
previous step
top

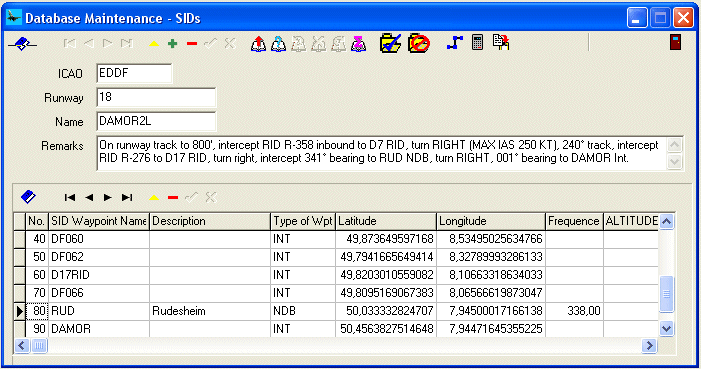

 Step 7

  1. Repeat step 2 for DF060
  2. Repeat step 2 for DF062
  3. Repeat step 3 to 5 for D17RID
    with bearing 276 and
    distance 17
  4. Repeat step 2 for DF060
  5. Repeat step 2 for DF066
  6. Repeat step 2 for RUD
  7. Repeat step 2 for DAMOR

next step
previous step
top



 Step 8

 Click in order to commit SID creation.

top

 ............................................................................. That's it ! ................................................................................
